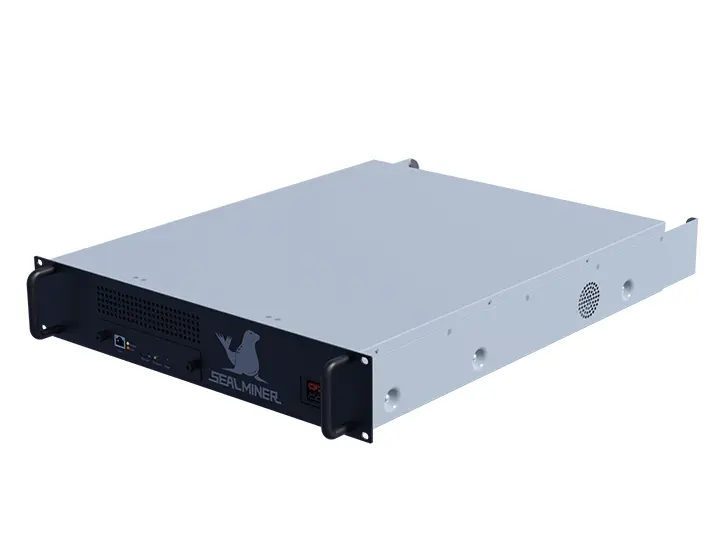

SEALMINER A2 PRO HYDRO 504-610 TH

Product Specifications

 Specifications

Crypto Algorithm | Coins: SHA256 | BTC/BCH/BSV

Hash Rate, TH/s:

• Normal Mode: 500–530 ±10%

• Low Power Mode: 460–480 ±10%

• High Performance Mode: 600–610 ±10%

  Power Efficiency @35°C, J/TH:

• Normal Mode: 14.9 ±5%

• Low Power Mode: 14.5 ±5%

• High Performance Mode: 16 ±5%

Power Supply Requirements

Maximum Input Power Of Power Supply, W: 10,000

Input Voltage, VAC: 380–480, 3–Phase

Maximum Input Current, Amp: 20

Input Frequency Range, Hz: 47–63

Hardware Configuration

Product Dimensions (W×D×H), mm: 482×665×86

Packaging Dimensions (W×D×H), mm: 567×787×248

Product Net Weight, kg: 20.5

Gross Weight Including Packaging, kg: 23

Internet Connections: RJ45 Ethernet 10/100M

Environmental Operating Parameters

Inlet Liquid Temperature, °C: 20–60 (Normal Mode)

Operating Humidity (Non-Condensing), RH: 10%–90%

Storage Temperature, °C: -30–70

Liquid Operating Parameters

Liquid Pressure, bar: ≤3.5

Liquid Medium: Pure water (or distilled water) + special corrosion inhibitor or antifreeze (select ratio according to freezing point)

Liquid Flow, L/min:

• Pure Water ≥10.2 L/min for pure water

• If antifreeze is used (e.g. 30% ethylene glycol aqueous solution), flow rate ≥11 L/min

  Note: 10.2 L/min corresponds to a temperature difference between inlet and outlet water close to 10.5°C at normal mode.

¹ Inlet coolant temperature.

² Ensure that all liquid is drained from the equipment prior to storage and transportation.
