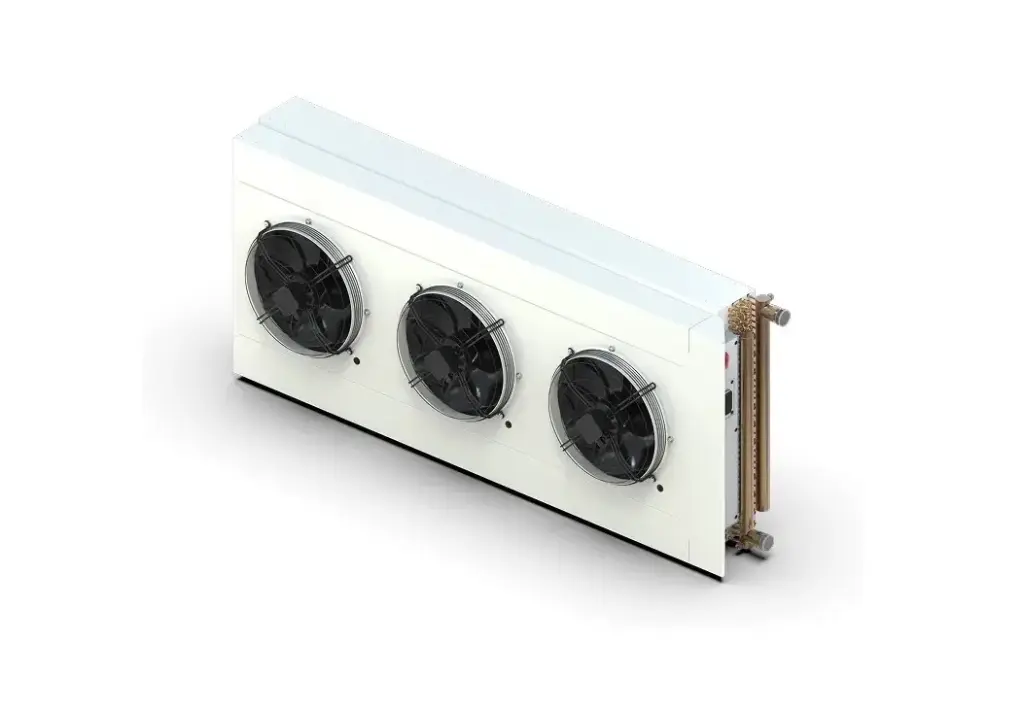

DRY COOLER 120 KW

Cooling capacity

(Ambient temp=35°C)

120 kW

Cooling capacity

(Ambient temp=25°C)

140 kW

Dimensions

2400(W) x 1400(D) x 500(H) mm

Fans

3 x 500 mm

Noise level [dB(A)]

58-62 dB(A)

Max power consumption

2.2 kW

Power Standard

400V/3Ph/50hz (1.4-0.9A 720-550W) or 460V/3ph/60hz (1.64A 1060W)

Fittings

2" / DN50

Fluid temperature In / Out

60 / 40 °C

Transport weight

250 kg | 551 lb

Nominal volume flow

5.2 mᶾ/hf

Pressure drop

0.39 bar
